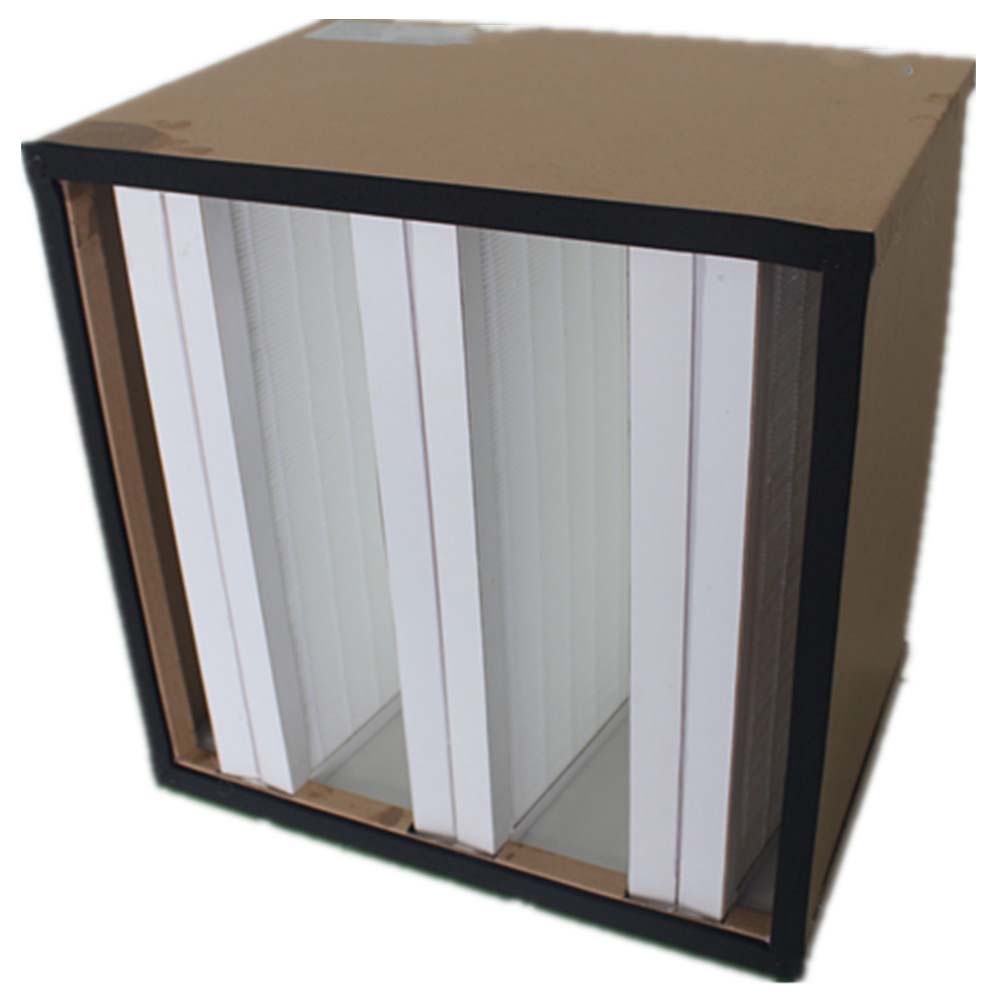

  • Light Weight HEPA Air Filters Standard Size 24X24X6 Inch Separator Type

    Clapboard:withClapboardMediumMaterial:FiberglassEfficiency:F8-H14FiltrationGrade:HEPAFilterType:BoxFilterName:HEPAAirFilterH13AluminiumFilterSeparatorFil


    Model NO.
    HTH
    • Media
    Ultra-Fine Fiberglass Filter Pape
    Frame
    Aluminum Alloy, Wood, Galvanized or Stainless Stee
    Structure
    Box Type, Single Header or Double Flanges.
    Separator
    Aluminum or Paper Foil.
    Sealant
    Polyurethane or Temperature Resistant Gel.
    Temperature
    90°c-350°c in Continuous Service.
    Transport Package
    Carton and Wooden Case
    Origin
    KOSAFILTER
    HS Code
    8421999090


    Product Description

    Advantages
    1.Filter efficiency ranges from F8 to H14.
    2.High eff. H13: traps 99.99% or higher of 0.3μm particles.
       Sub-high eff. E10: traps 95% or higher of 0.5μm particles.
       Medium eff. F8: traps 80% or higher of 1.0μm particles.
    3.Adopt special folding machine for manufacturing.
    4.Use special fiberglass filter paper as the filter media, good stability of filtration efficiency.
    5.Use special aluminum foil or offset paper as separator.
    6.Double side retainers, protect the filter material, with good strength.
    7.Each filter is tested according to EN1822:2009.

    Material Instructions
    1.Media: Ultra-fine fiberglass filter paper.
    2.Frame: Aluminum alloy, wood, galvanized or stainless steel.
    3.Structure: Box type, single header or double flanges.
    4.Separator: Aluminum or paper foil.
    5.Sealant: Polyurethane or temperature resistant gel.
    6.Temperature: 90°C-350°C in continuous service.

    Application
    Suitable for electronics, bio pharmaceutical industry, hospital and the occasions require high cleanliness terminal filtration.

    Structure Drawings



     Common Specifications



    ModelDimensionsMedia Area (m2)Rated Air Flow (m3/h)Initial Pressure Drop (Pa)
    W×H×D (mm)StandardHigh CapacityStandardHigh CapacityF8E10H13H14
    HTH230230×230×1100.81.4110180≤85≤175≤235≤250
    HTH320320×320×2204.16.1350525
    HTH484/10484×484×2209.614.410001500
    HTH484/15726×484×22014.621.915002250
    HTH484/20968×484×22019.529.220003000
    HTH630/05315×630×2208.112.17501200
    HTH630/10630×630×22016.524.715002250
    HTH630/15945×630×22024.937.322003300
    HTH630/201260×630×22033.450.130004500
    HTH610/03305×305×1502.43.6250375
    HTH610/05305×610×1505.07.5500750
    HTH610/10610×610×15010.215.310001500
    HTH610/15915×610×15015.423.115002250
    HTH610/201220×610×15020.630.920003000
    HTH610/05X305×610×29210.115.110001500
    HTH610/10X610×610×29220.931.320003000
    KOSAFILTER makes various of other models' HTH filter which are not listed in above table. Please consult with us if you need.

    The Initial Pressure Drop and Rated Air Flow Performance Curve

    In case of specifications or structures changes, KOSA will provide up-to-date data on website: www.kosafilter.com.
