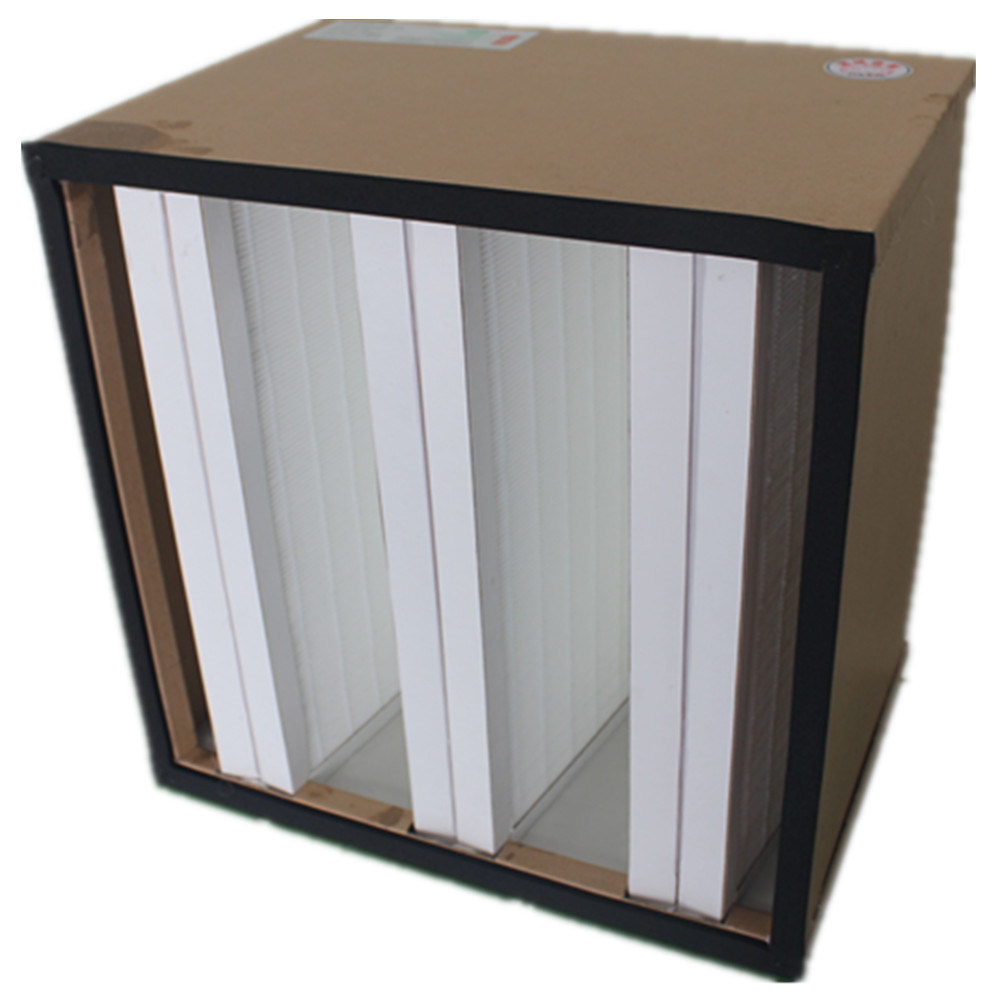

  • Hmv-V-Bank High F8 5V Galvanized Frame Capacity Filter

    Clapboard:withoutClapboardFilterNumber:5MediumMaterial:FiberglassEfficiency:F8FiltrationGrade:MediumFilterType:VBankFilter


    Model NO.
    HMV
    • Media
    Fiberglass or PP Filter Paper
    Frame
    Galvanized Steel Sheet
    Separator
    Hot-Melt Glue
    Sealant
    Polyurethane
    Temperature
    Maximum 90°c in Continuous Service
    Transport Package
    Carton / Wooden Case
    Specification
    610x610x292-5V
    Trademark
    KOSAFILTER
    Origin
    China
    HS Code
    8421399090
    Production Capacity
    8000PCS


    Product Description


    Application
    Suitable for air conditioning purification equipment needs high ventilation, such as medium filter and terminal filter in air-conditioning systems.
    Advantages
    Filter efficiency ranges from E10 to U17.
    Adopt computer-controlled automatic production line for manufacture of mini pleat filter material, good stability of filtration efficiency.
    Using special fiberglass paper or PP paper as the filter media, good stability of filtration efficiency.
    Frame can be made of galvanized steel sheet, stainless steel sheet or ABS plastic.
    Each filter is tested according to EN1822:2009.
    Material Instructions
    Media: Applies fiberglass or PP filter paper.
    Frame: Galvanized steel sheet, stainless steel sheet or ABS plastic with V-Bank high capacity.
    Separator: Hot-melt glue.
    Sealant: Polyurethane.
    Temperature: Maximum 90°C in continuous service
    Structure Drawings



    Common Specifications
    ModelDimensionsStructural StyleFrameMedia Area
    (m2)    		Rated Air Flow
    (m3/h)    		Initial Pressure Drop (Pa)
    W×H×D (mm)F8E10H13H14
    HMV1212-2VF25287×287×292287
    Header
    25mm    		2V
    Plastic/Metal    		4.2800110180260300
    HMV1220-2VF25287×490×2927.71200
    HMV1224-2VF25287×592×2929.41600
    HMV2012-3VF25490×287×292490
    Header
    25mm    		3V
    Plastic/Metal    		6.41100
    HMV2020-3VF25490×490×29211.61900
    HMV2024-3VF25490×592×29214.42400
    HMV2412-3VF20/25592×287×292592
    Header
    20/25mm    		3V
    Plastic/Metal    		6.41100
    HMV2420-3VF20/25592×490×29211.61900
    HMV2424-3VF20/25592×592×29214.42400
    HMV2412-4VF20/25592×287×2924V
    Plastic/Metal    		8.41600
    HMV2420-4VF20/25592×490×29215.42500
    HMV2424-4VF20/25592×592×29218.83200
    HMV2412-5VF25592×287×292592
    Header
    25mm    		5V
    Plastic/Metal    		10.51800
    HMV2420-5VF25592×490×29219.03200
    HMV2424-5VF25592×592×29223.53900
    HMV1212-2V305×305×292610
    Box    		Plastic/Metal5.4850
    HMV1224-2V305×610×29210.81700
    HMV2412-4V610×305×2924V
    Metal    		111700
    HMV2424-4V610×610×292223400
    HMV2412-5V610×305×2925V
    Plastic/Metal    		13.52100
    HMV2424-5V610×610×292274200
    HMV2412-6V610×305×2926V
    Metal    		162500
    HMV2424-6V610×610×292325000
    KOSAFILTER makes various of other models' HMV filter which are not listed in above table. Please consult with us if you need.

    The Initial Pressure Drop and Rated Air Flow Performance Curve
