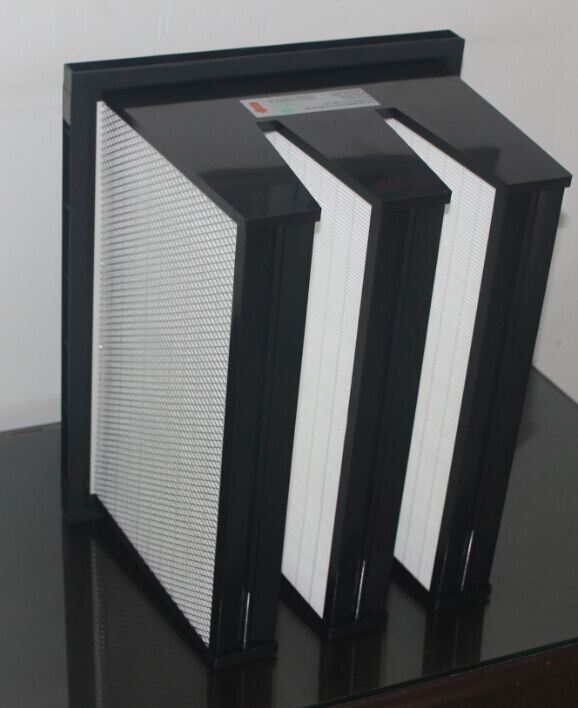

  • High Temperature Resistance U17 HEPA Filter for Lab

    Clapboard:withClapboardMediumMaterial:FiberglassFiltrationGrade:HEPAFilterMedia:SpecialFiberglassPaperFrame:StainlessSteelSeparator:SpecialAluminumFoil


    Model NO.
    HTR
    • Sealant
    Special Temperature Resistant Silica Gel
    Transport Package
    Carton and Wooden Case
    Trademark
    KOSAFILTER
    Origin
    Shanghai
    HS Code
    8421999090


    Product Description


    Advantages
    Traps 40~60% of ≥5.0μm particles.
    Use special low-resistance, high-throughput and temperature resistance fiberglass fiber as the filter material, with high dust-holding capacity.
    Frame can be made of galvanized steel sheet or aluminum alloy.
    Temperature resistance: ≥ 250ºC.
    Meeting EN779:2012.


    Material Instructions
    Media: Special low-resistance and high-through fiberglass mat with high dust collecting capacity, flat structure or pleated structure
    Frame: Galvanized steel sheet or aluminum alloy
    Temperature resistance: ≥250°C

    Structure Drawings



    Application
    Applies to fresh air and return air, act as pre-filter to protect high-performance filters and clean room ventilation system filters.

    Common Specifications

    ModelDimensionsRated Air Flow (m3/h)Initial Pressure Drop (Pa)Media Area (m2)
    W×H×D (mm)StandardHigh CapacityStandard High Capacity
    HPR-500×500×25500×500×2512002400≤20≤450.25
    HPR-500×500×20500×500×20
    HPR-500×500×15500×500×15
    HPR-595×595×25595×595×25170034000.35
    HPR-595×595×20595×595×20
    HPR-595×595×15595×595×15

    KOSAFILTER makes various of other models' HPR filter not listed in above table. Please consult with us if you need.

    The Initial Pressure Drop and Rated Air Flow Performance Curve

    In case of specifications or structures changes, KOSA will provide up-to-date data on website: www.kosafilter.com.
