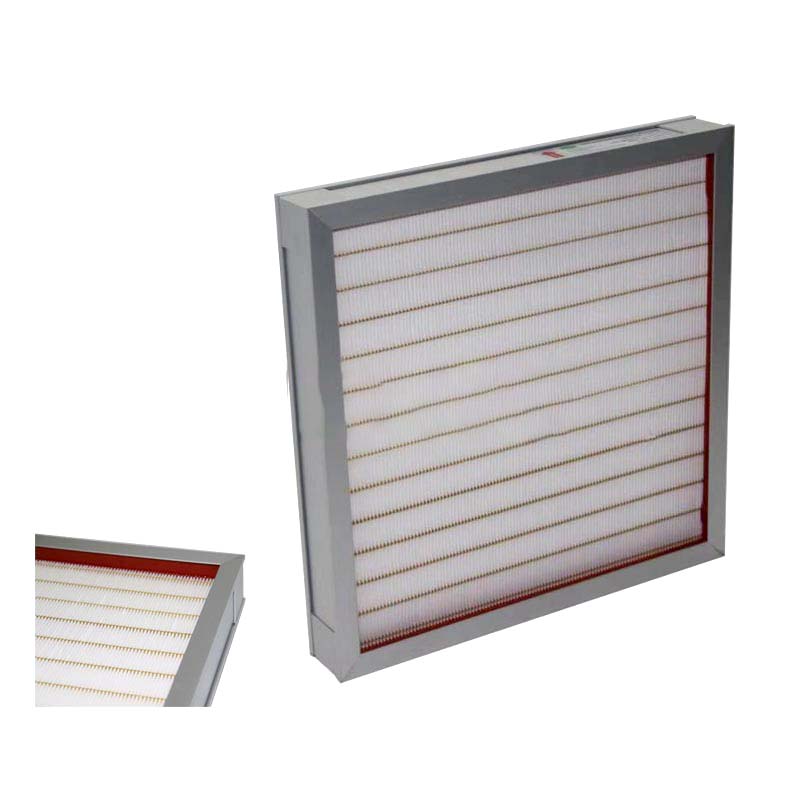

  • Primary-Efficiency Flat Filter

    Clapboard:withoutClapboardFilterNumber:1MediumMaterial:NonwovenFabricEfficiency:G4FiltrationGrade:PreFilterType:PanelFilter


    Model NO.
    HPF
    • Transport Package
    Carton+Wooden Box
    Specification
    500*500*25
    Trademark
    KOSAFILTER
    Origin
    China
    HS Code
    8421999090
    Production Capacity
    100000psc/Year


    Product Description



    Application
    Suitable as pre-filter used to protect high-performance filters, clean room ventilation system filters and applies to airport, subway, shopping malls and other places of public services.
    Advantages
    Filter efficiency ranges from G3 to M5,traps 40~60% of
     ≥5.0μm particles.
    Use special low-resistance and high-throughput non-woven fabrics as the filter media, with high dust-holding capacity.
    There are galvanized steel sheet, stainless steel sheet, aluminum alloy or plastic frame.
    Meet EN779:2012.
    Material Instructions
    Media: Non-woven fabrics, flat structure.
    Frame: Galvanized steel sheet, stainless steel sheet, aluminum alloy or plastic.
    Guard mesh: Galvanized, aluminum alloy, welding square guard mesh in both sides.
    Temperature: Maximum 90°C in continuous service.
    Structure Drawings

    Common Specifications

    Model    		DimensionsRated Air Flow (m3/h)Initial Pressure Drop (Pa)
    Media Area
    (m2)
    W×H×D (mm)  StandardHigh Capacity  StandardHigh Capacity
    HPF-500×500×25500×500×2512002400≤20≤500.25
    HPF-500×500×20500×500×20
    HPF-500×500×15500×500×15
    HPF-595×595×25595×595×25170034000.35
    HPF-595×595×20595×595×20
    HPF-595×595×15595×595×15.

    KOSAFILTER makes various of other models' HPF filter not listed in above table. Please consult with us if you need.
    The Initial Pressure Drop and Rated Air Flow Performance Curve

    In case of specifications or structures changes, KOSA will provide up-to-date data on website: www.kosafilter.com.
