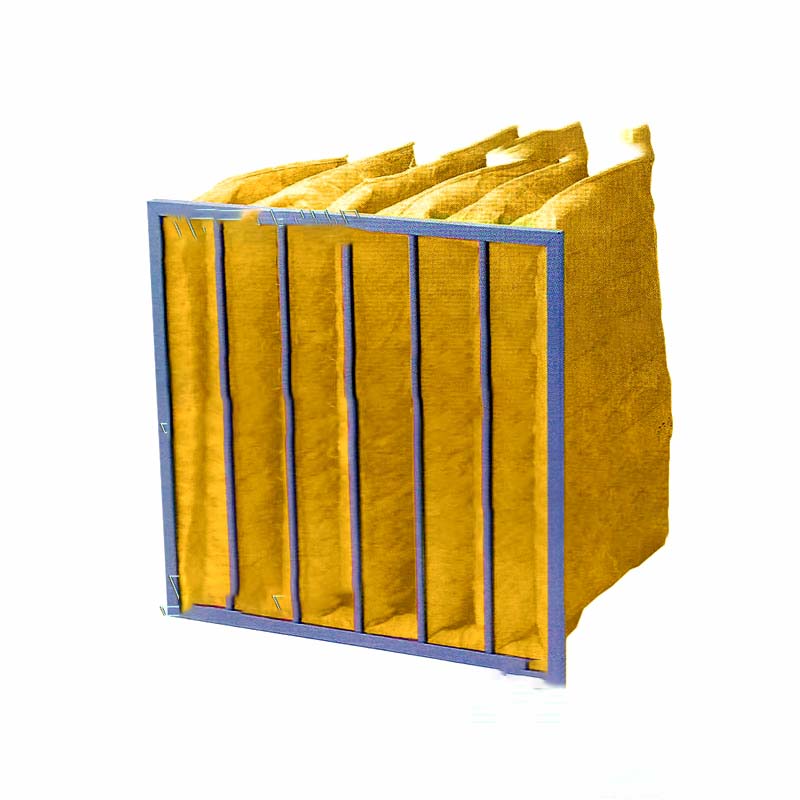

  • Europe Standard Medium Filter Non Woven Bag Type Pocket Filter

    Material:Non-wovenMediumMaterial:PolyesterFibersType:PocketFilterFiltrationGrade:G3-M6FilterBagSectionalShape:FlatbagFilterBagEnvironment:RoomTemperature


    Model NO.
    HBP
    • Frame
    Galvanized Plate, Aluminum etc
    Temperature
    Maximum 90°c in Continuous Service
    Transport Package
    Carton and Wooden Case
    Trademark
    KOSAFILTER
    Origin
    Shanghai
    HS Code
    8421999090


    Product Description


    Advantages
    1.Filter efficiency ranges from G3 to M6.
    2.In accordance with different diameter and density of polyester fiber, we use non-woven way and produce with rolling stitch which is multiple directional and layer gradient. It has a property of high permeability, low initial resistance and high dust collection rate.
    3.The filter frame is made of aluminum alloy, galvanized steel, stainless steel or plastic.
    4.Has passed international UL certification and meet EN779:2012.

    Material Instructions
    1.Media: Polyester fibers.
    2.Frame: Galvanized plate, aluminum, stainless steel plate or plastic, the thickness of frame can be 21 mm, 25 mm or 45 mm.
    3.Temperature: Maximum 90°C in continuous service

    Application
    Suitable as pre-filter used to protect high-performance filters, and filtration of fresh air in clean room ventilation system and airport, subway, shopping malls and other places of public services.

    Structure Drawings
    Common Specifications
    ModelDimensionsNo. of PocketsMedia Area (m2)Initial Pressure Drop (Pa) @ Air Flow (m3/h)
    W×H×D (mm)G3G4M6
    HBP-24×24×14-6P592×592×38163.325@2500  40@360035@2500  60@360080@2500
    HBP-20×24×14-5P490×592×38152.725@2100  40@300035@2100  60@300080@2000
    HBP-12×24×14-3P287×592×38131.625@1250  40@180035@1250  60@180080@1250
    HBP-24×24×22-6P592×592×55864.625@3800  40@540035@3800  60@540055@2500  85@3600
    HBP-20×24×22-5P490×592×55854.125@3200  40@450035@3200  60@450055@2000  85@3000
    HBP-12×24×22-3P287×592×55832.325@1900  40@270035@1900  60@270055@1250  85@1800
    KOSAFILTER makes various of other models' HBP filter not listed in above table. Please consult with us if you need.

    The Initial Pressure Drop and Rated Air Flow Performance Curve

    In case of specifications or structures changes, KOSA will provide up-to-date data on website: www.kosafilter.com.

    www.kosafilter.comwww.kosafilter.com
